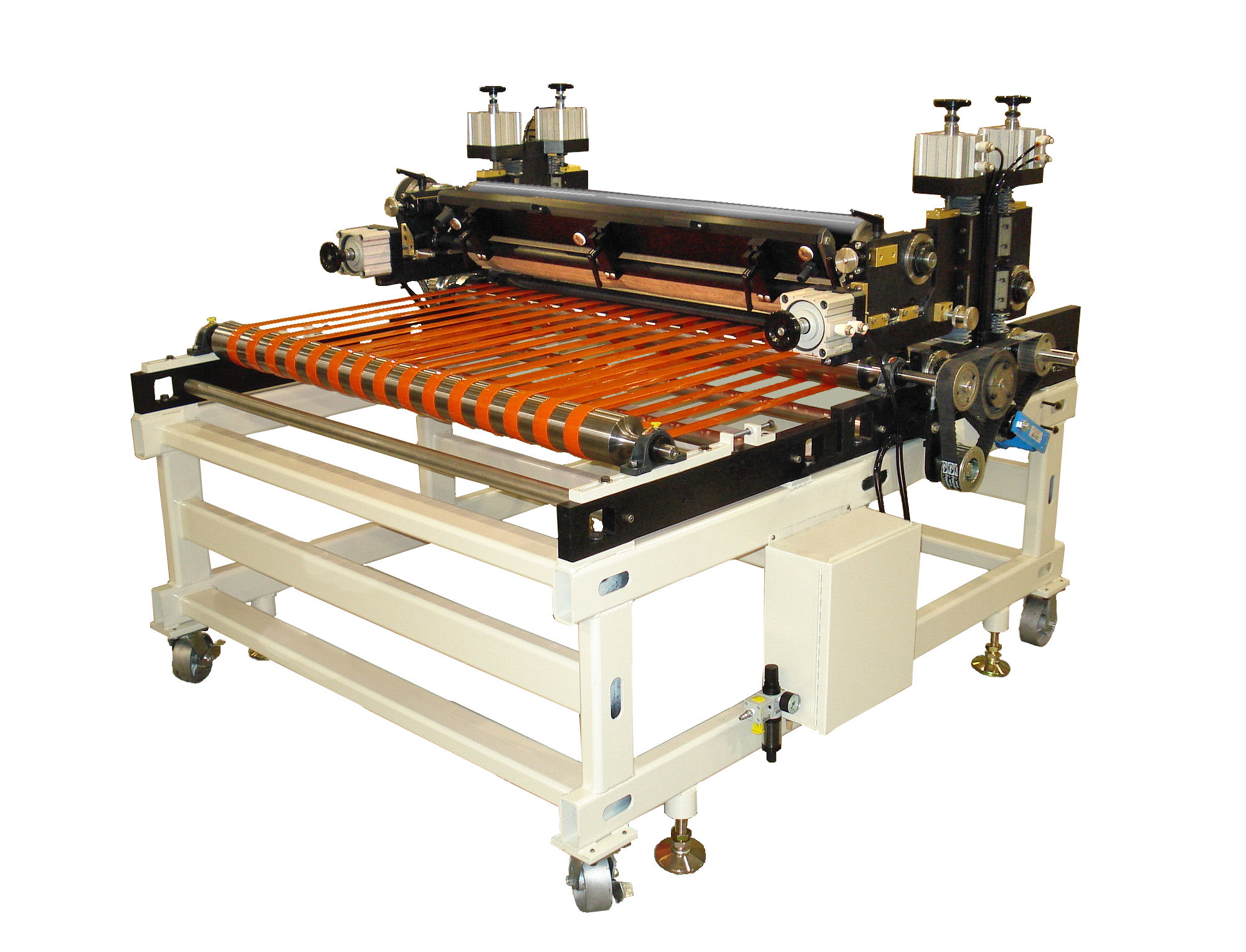

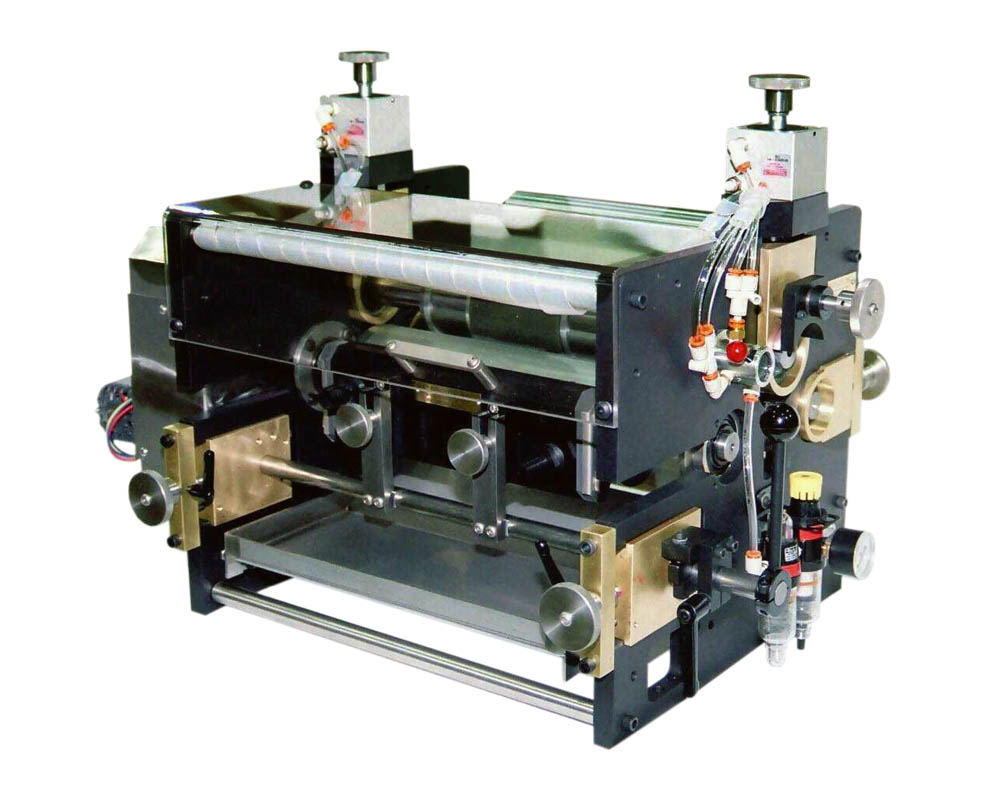

T-Series Flexo Presses — Narrow to Mid-Width
Designed To Meet Smaller Budgets Without Sacrificing Quality And Performance
The T-Series narrow web flexo presses from Retroflex are designed to meet smaller budgets without sacrificing quality and performance.
T-Series presses are ideal for both narrow to medium web widths and are equipped with the Retroflex chambered doctor blade system, ceramic anilox roll, and pneumatic throw-off. Most T-Series flexo presses are designed to run up to 500 fpm, and sometimes higher under certain conditions.
| T-Series Flexo Presses – Standard Specifications | |
|---|---|
| Web Widths: | 8 to 60 Inches |
| Web Speeds: | Up to 500 FPM |
| Configuration: | Inline |
| Colors: | 1 Standard (multiple optional) |
| Doctor Blade System: | Retroflex RADBS Chambered System |
| Ceramic Anilox Roll | |
| Pneumatic Throw-Off | |
| Optional Features on Most T-Series Flexo Presses | |
|---|---|
| Circumferential Registration (manual) | |
| Tension Isolation Nip Roll System | |
| Auto-Flush Systems For Ink Chambers | |
| Web Inspection Camera | |
| Unwind And Rewind (single or turret) | |
| Dryer System (hot air, IR, UV, EB or compressed air) | |
| Chill Section |
HD Option
The Heavy Duty option is an overall more robust design than the standard model, with thicker frames and larger roll diameters. Typically ordered when larger than standard repeats and/or higher than standard speeds are requested.
